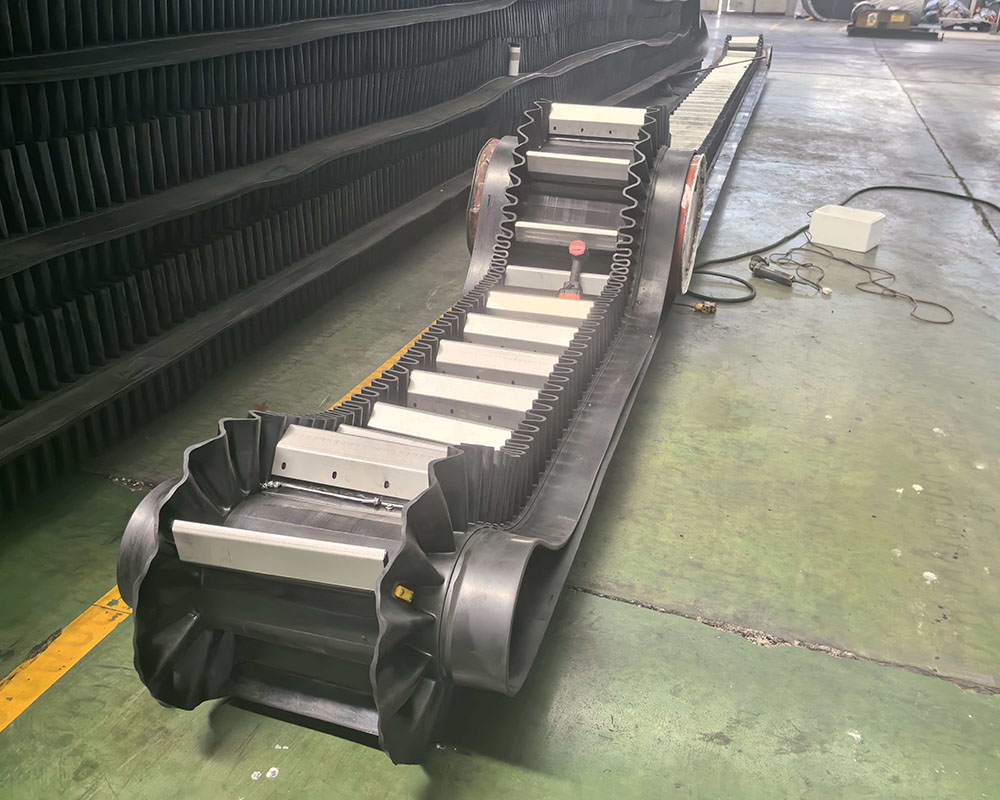

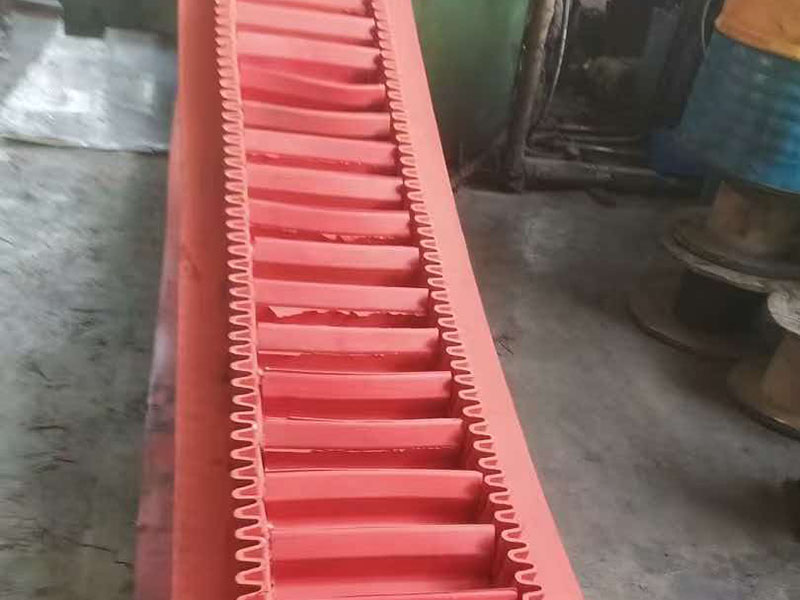

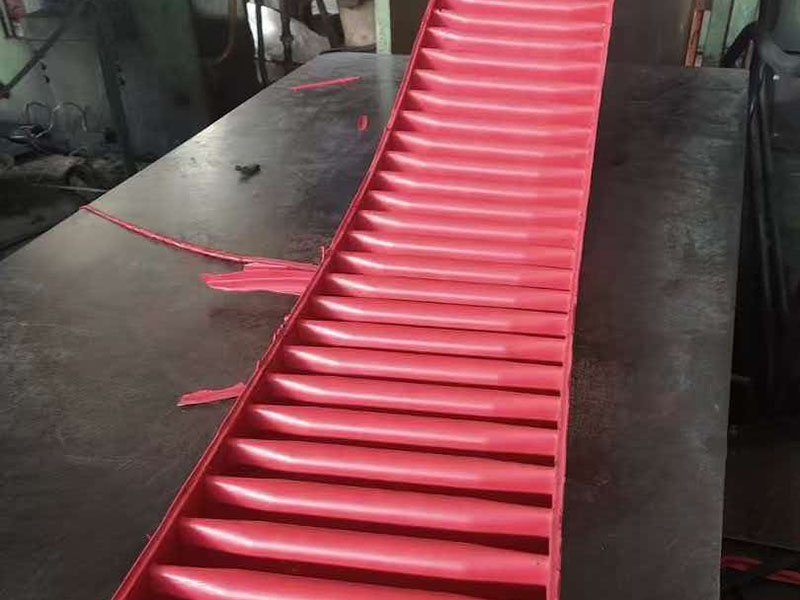

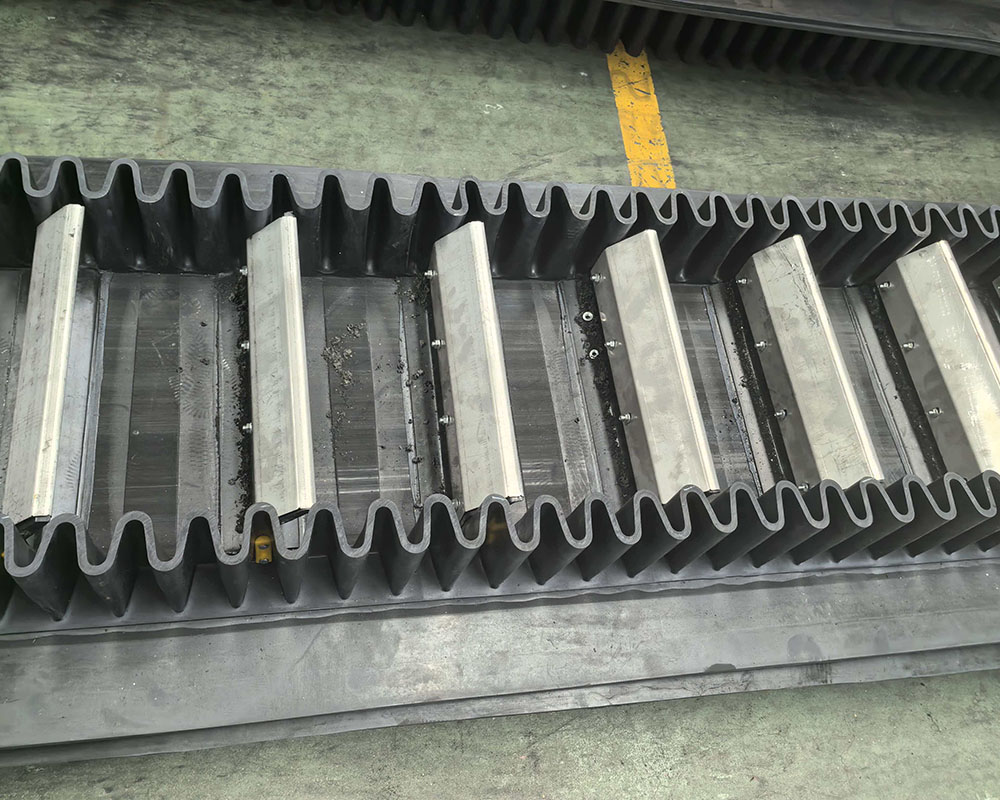

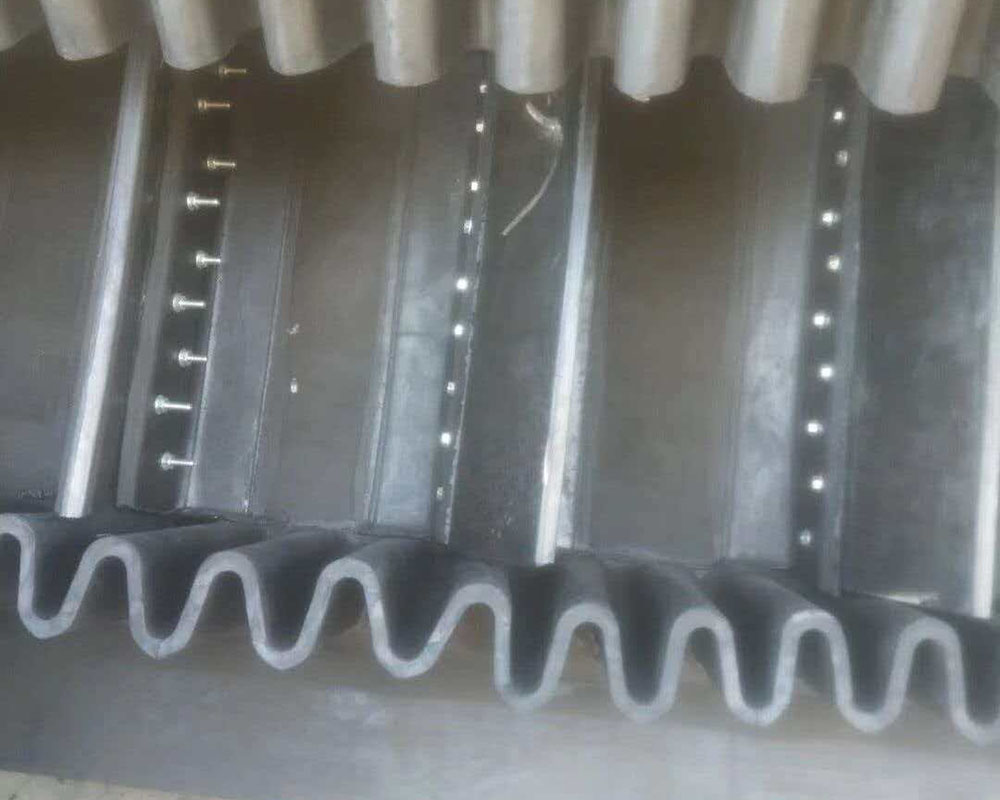

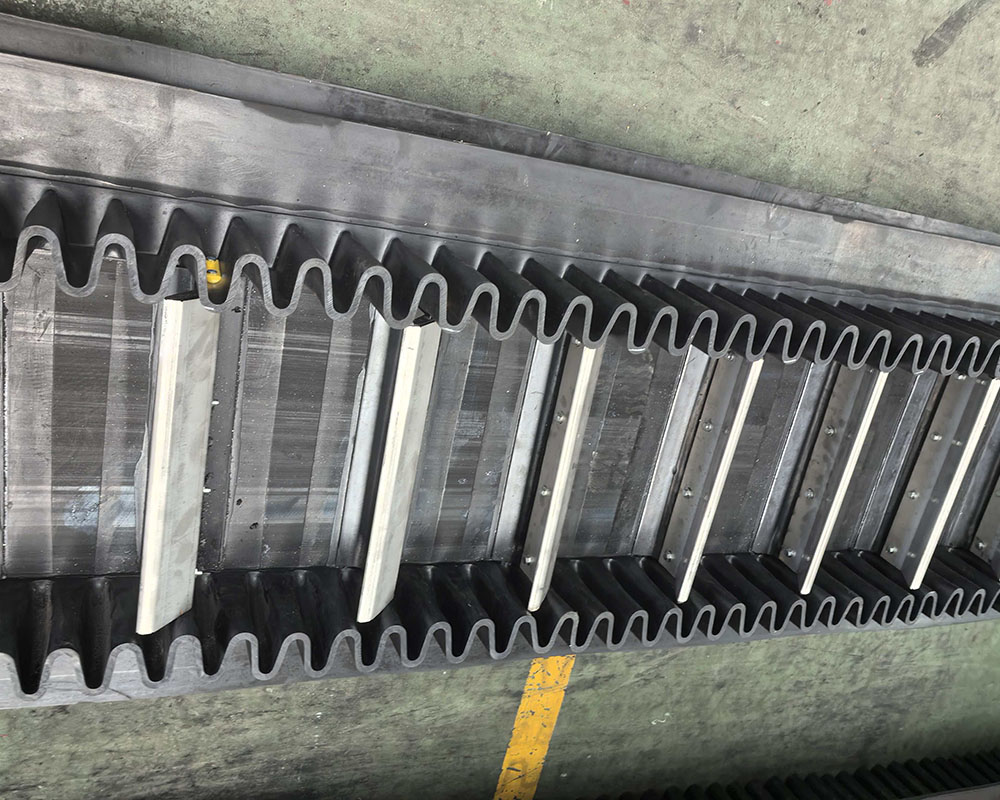

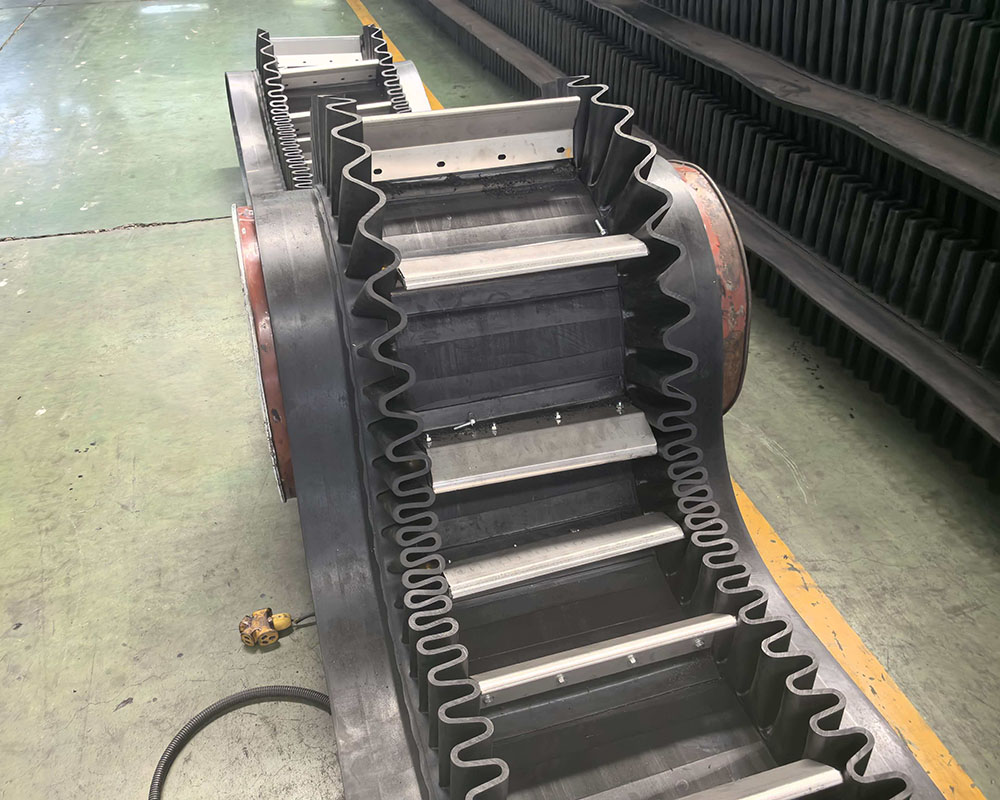

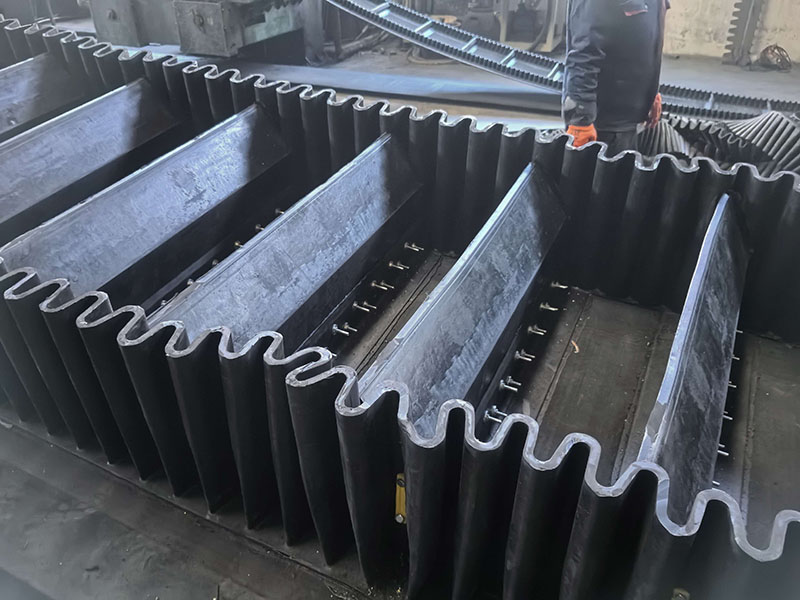

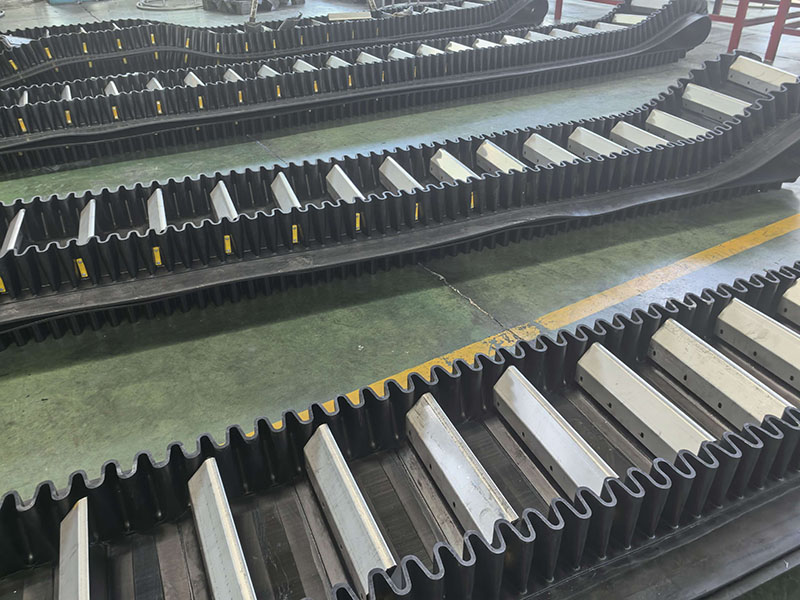

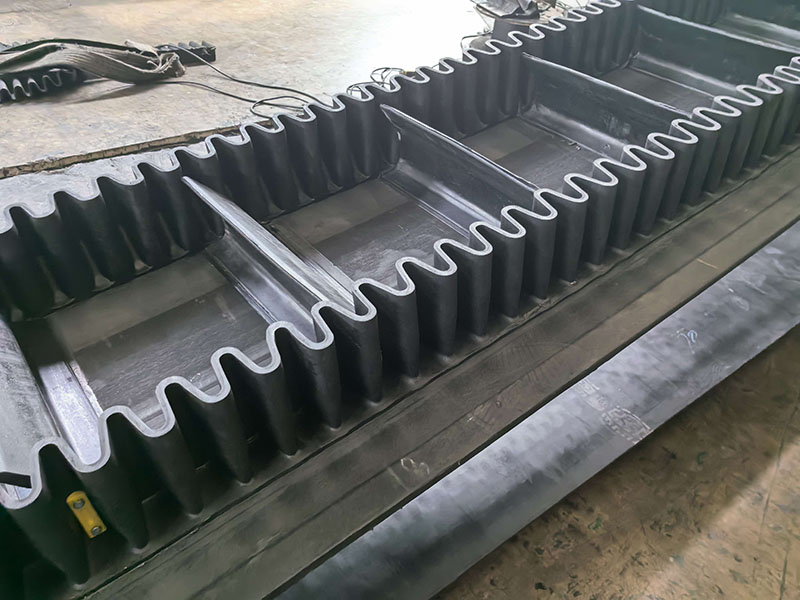

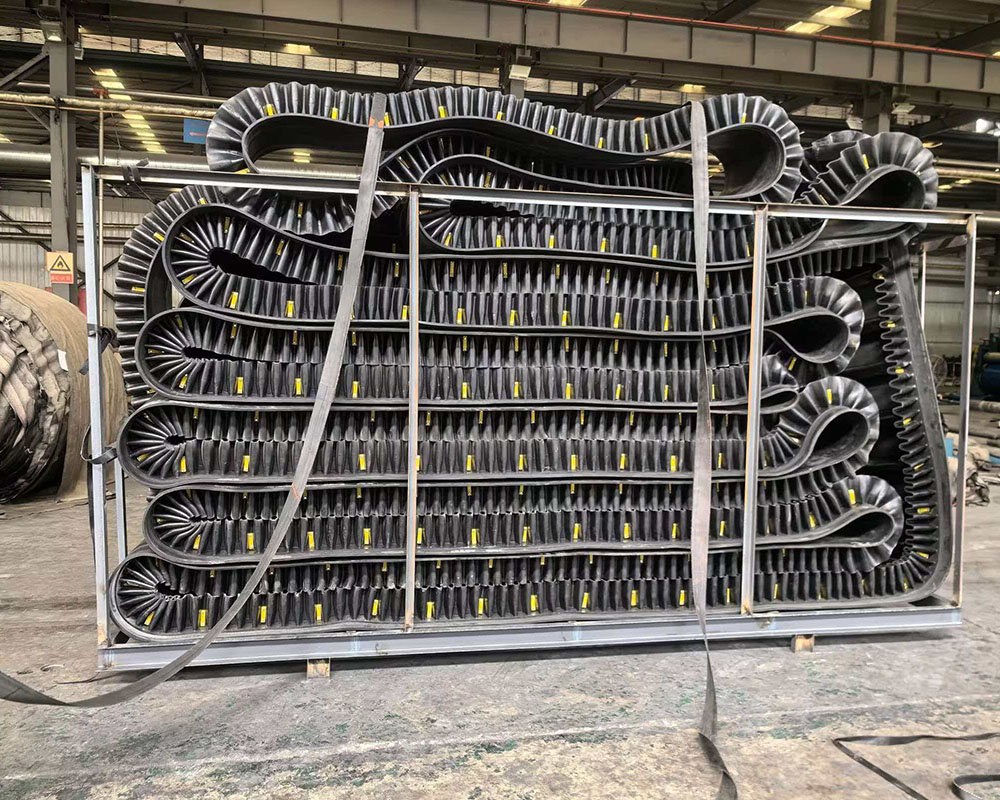

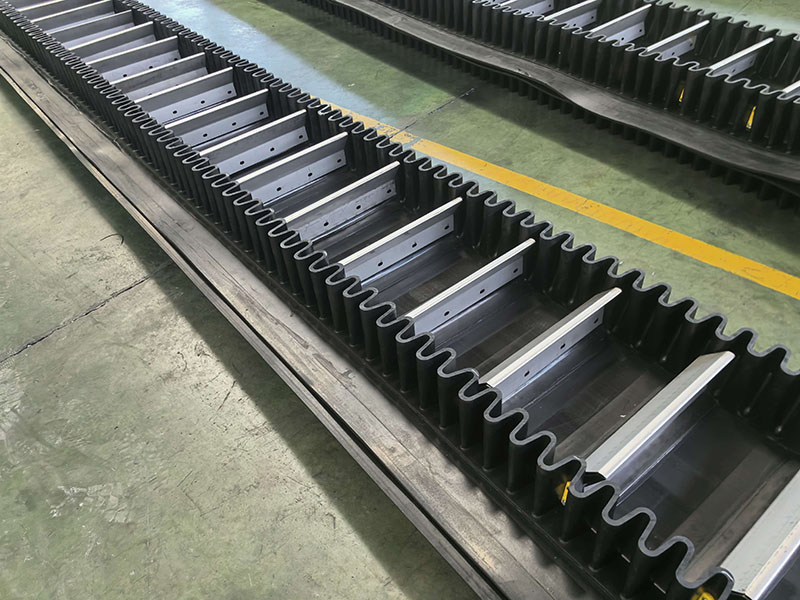

Corrugated sidewall conveyor belts are widely used for material handling in ports, metallurgy, mining, power generation, coal, foundries, building materials, grain, and chemical industries. They enable the continuous conveyance of various bulk materials at any angle between 0 and 90 degrees, featuring a steep conveying angle, a wide range of applications, and a small footprint. Features such as the absence of transfer points, reduced civil engineering costs, low maintenance expenses, and high conveying capacity address conveying angles that ordinary conveyor belts or patterned conveyor belts cannot achieve. Corrugated sidewall conveyor belts can be designed into a complete conveying system according to requirements, eliminating the need for intermittent conveying and complex lifting systems. Corrugated sidewall conveyor belts can transport various bulk materials—ranging from coal, ore, and sand to chemical fertilizers and grain—along horizontal, inclined, vertical, and variable-angle routes. There are no restrictions on material particle size, which can range from very fine particles to large particles up to 400 mm, and conveying capacities range from 1 cubic meter per hour to 6,000 cubic meters per hour.

Requirements for the Base Belt

Corrugated sidewall conveyor belts must possess a certain level of tensile strength and abrasion resistance. For corrugated sidewall conveyor belts with open edges, the belt must be flexible in the longitudinal direction to accommodate angle changes, while maintaining a certain degree of rigidity in the transverse direction. The corrugated sidewall conveyor belts manufactured by our company utilize a specially structured, transversely rigid base belt, which eliminates belt sagging during the return leg for large-size conveyor belts.

Feature:

Corrugated sidewall conveyor belt is one of ghe most effective ways of elevating materials in a confined space,the cost is reduced by single belt operation,wide range material can be handled,less space requirement,no transfer point,low maintenance and big capacity.Corrugated sidewall belt can be designedinto a set of complete transportation system according to application.
